CLASER develop the standard Laser kits for eye safe laser (OPO) system. The high compact design and low cost is OK for this system.
1. Er: Glass rods. The ETA14 of ER:YB:doping Glass with dimeniosn of 1x1x10mm to Dia.5x50mm with doping: 0.13%, 0.2% 0.27%, 0.5% is available with hgh damage threshold coating for LD pump compact design 1540nm laser system. Please view ErGlass
2. Er: Glass rods. The CR14 of ER:YB: Cr::doping Glass with dimeniosn of 1x1x10mm to Dia.5x150mm with doping: 0.13%, 0.5% is available with hgh damage threshold coating. for lamp pump compact design 1540nm laser system.Please view ErGlass
3.Co:MgAl2O4 crystals. We supply the Co:MgAl2O4 crystals for 1540nm passive Q-switch of T0=30% to 99% , Please view Co:MgAl2O4
4. BK7 cone. Dimension with round or square clear apeature and long to 100mm is available with two side AR coating.. Please view Special Optics
5. YAG cone. Dimension with square clear apeature only and long to 50mm is available with two side AR coating.. Please view Special Optics
6.Diffusion Bonding Nd:YAG+Cr:YAG, YAG+Nd:YAG: The Dimension from Dia.2 to 10mm and length from 0.5mm to 150mm.Doping from 0.2% to 1.1% . Please view Diffusion bonding crystals
7.KTP (KTA)for OPO system: The different dimension with high damage threshold OPO coating is available from us.Please view KTP
8.Eye Safe OPO mirror and output coupler is available.
Standard Stock
Products |
Material |
Doping |
Dimension |
Coating |
Application |
Marked |
ETA14 |
Er:Yb:Glass |
0.13%:Er |
Dia.1.4x25mm |
AR/AR@1540nm |
LD pump 1540nm Laser |
Er:Yb:Glass |
0.2%:Er |
Dia.1.2x20mm |
AR/AR@1540nm |
Er:Yb:Glass |
0.27%:Er |
Dia.1.2x10mm |
AR/AR@1540nm |
Cr14 |
Er:Yb:Cr Glass |
0.13%:Er |
Dia.2x25mm |
AR/AR@1540nm |
lamp pump 1540nm
Laser |
side polished |
Er:Yb:Cr Glass |
0.13%:Er |
1.3x1.3x30mm |
AR/AR@1540nm |
Co:
MgAl2O4 |
T0=
30-99% |
Dia.3-10mm |
AR/AR@1540nm |
Passive Q-Switch |
| 3x3-10x10mm |
AR/PR@1540nm |
Diffusion bonding crystals |
YAG+
Nd:YAG |
0.7%
Nd |
Dia.4x(45+5)mm |
S1:HR@1064HT@808
S2: AR@1064nm
|
High power LD laser |
side polished |
Nd:YAG
+Cr:YAG |
0.7%
Nd OD=0.35
|
3x3x(35+3)mm |
S1:HR@1064HT@808
S2:PR=60%@1064nm
|
Nd:YAG |
1.1%Nd |
Dia4x50mm |
S1:HR@1064HT@808
S2: AR@1064nm |
side polished |
Cr:YAG |
T0=45% |
Dia6mm |
S1:AR@1064nm S2:AR@1064nm |
Q-switch |
side polished |
| KTP |
NCPM |
3x3x12mm |
S1:AR@1064HR@1570nm S2:HR@1064
PR=60%@1570nm
|
OPO for eye safe laser
|
KTP |
NCPM |
4x4x20mm |
S1:AR@1064AR@1570 S2:AR@1570AR@1064nm |
KTA |
NCPM |
4x4x15mm |
S1:AR@1064AR@1570nm S2:AR@1570AR@1064nm |
| Cone |
BK7 |
(10x5)x(dia.5) |
AR/AR@808nm |
LD waveguide |
sides polished |
YAG |
undoping |
(10x5)x(5x5) |
AR/AR@808nm |
| Output coupler |
BK7 |
Dia.10x3mm |
S1:HR@1570AR@1064nm
S2:AR@1064nm |
Front mirror |
BK7 |
Dia.10x3mm |
S1:PR@1570HR@1064nm
S2:AR@1570nm |
Back mirror |
| YAG |
undoping |
3x3x37mm |
uncoated |
Rail |
sides polished |

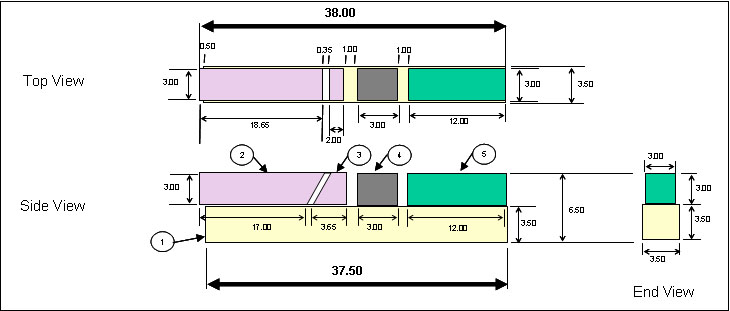

We has cooperated with our customer build the following standard producst for customer application.
1 – YAG rail, inspection polish top
2 – 1%Nd:YAG Brewster, inspection polish top and sides
S1=polish with HR@1064nm + HT@790-820nm
S2=polish Brewster face
3 – YAG Brewster End Cap, all sides fine grind
S1=polish Brewster face
S2=polish with AR@1064nm
4 – Cr4+:YAG OD=0.35, all sides fine grind
S1 and S2 =polish with AR@1064
5 – KTP-OPO cut, all sides fine grind
S1=polish with AR@1064nm + HR@1570nm
S2=polish with HR@1064nm + 60%PR@1570nm |
